1 KΩ 90 Degree Bended Silicone Spark Plug Wire Connector with High Uniformity of Dimension
Dimensions & Material :
Spark Plug Wire Component Type: Distributor and coil boot.
Spark Plug Wire Diameter : 8-8.5mm.
Distributor Plug Ends: Male/HEI.
Distributor Boot Ends Degree: 90 degree.
Distributor Boot Material: Silicone.
Terminals Material: Copper.
Color: As picture.
Quantity: Sold as a set of 9.
1. Raw material properties:
- Shore-A hardness-------------------------------------------55±5A
- Elongation at break-----------------------------------------≥300%
- Tear strength------------------------------------------------≥15N/mm
- Dielectric strength-------------------------------------------≥20KV/mm
- Tensile strength---------------------------------------------≥6N/mm2
- Tensile deformation-----------------------------------------≤20%
- Density--------------------------------------------------------1.17±0.02 g/cm3
- Withstand voltage 18KV for 30minutes------------------NO breakdown
- Surface resistance------------------------------------------≥1011Ω
- Ageing resistance-------------------------------------------155±2.5℃X168h,Without any cracking
2. Product characteristics:
- Usage temperature------------------------------------------20℃~155℃
- Breakdown voltage (AC)-----------------------------------≥30KV
- Insertion and removal forces------------------------------20N-70N
- Overall length------------------------------------------------/
- Resistance----------------------------------------------------1KΩ±20%
- Lifetime--------------------------------------------------------≥50,000km / ≥3years
- Heat and cold resistance
- Great dielectric properties
- Acid and alkali resistance
- No deformation, no dilatation
- Good uniformity of dimension
- Can be customized based on customers
3. Assembly dimension:
- Cable entry diameter----------------------------------------5.5±0.5mm
- Assembly dimension: connecting cable------------------
- Plug entry diameter------------------------------------------14.5±0.5mm
- Assembly dimension: connecting spark plug-----------
4. Standard:
5. Customers:
6. Applications:

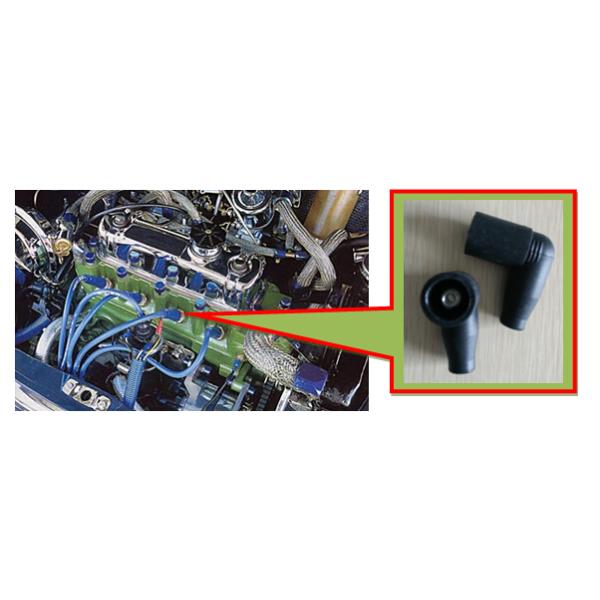

- The spark plug wire connector is used in the ignition system of auto engine, see picture below:
Established in 1999, Nanjing Tianyi (TY) is a specialized manufacturer of automobile parts such as ignition coils, ignition cable sets, insulating sleeve and resistor for spark plug. Located in Dongping Industrial Park of Lishui County in Nanjing, just 10, 0.5 and 1 kilometers away from Nanjing Lukou International Airport, Jiangsu Yanjiang Highway and Ninghang Highway individually,TY enjoy convenient access to major transportation networks.
The company occupies about 17,350 square meters area and owns many advanced facilities. In the factory, workshops for rubber boot and subassembly, resistor, ignition coil, non-framed coil and molding are all established.
The rubber boot and subassembly workshop adopts rubber injection molding machine. The daily production capability has been over 100 thousand. These products are mainly applied in varieties of automobile and motorcycle engines.
With plastic injection molding machine in the resistor workshop, the daily capacity can reach over 80 thousand. These resistors are mainly used in auto engines and boiler ignition system.
